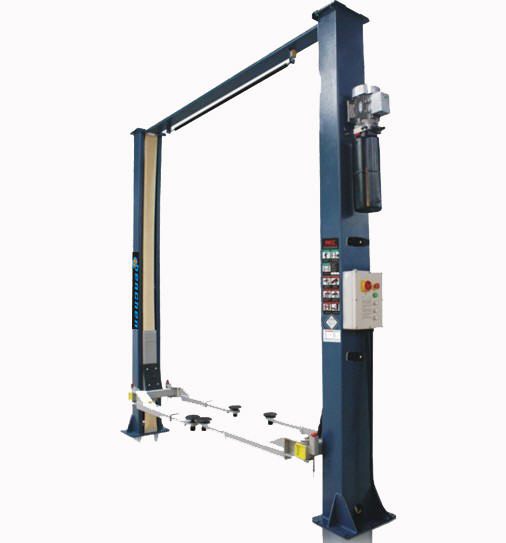

HC240DLE Two Post Car Lift (Item:622003)


Clear floor two post lift
. Electrical release, easy to operate just by pressing UP and DOWN and LOCK button.
. Low voltage control system matches CE standard.
. Adopt electromagnetic release, more safe and reliable
. Equip chain protection cover to enhance the lifetime of steel rope and chain. Equip height limit switch to ensure the lifting height safely, prevent the vehicle roof from damaging
. Equalization of two steel cables force both sliding blocks to move synchronously,effectively prevent the vehicle from tilting
. Minimum height of the lifting pad is 110mm, easily lift and suitable for low profile cars and SUV.
. Equip aluminum motor and car door-opening protection as standard configuration
. Reliable oil cylinder, adopts chrome-plating honed cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life
. Passed 115% dynamic test and 150% static test


  • Model
  • HC-240DLE(Item:622001)
  • Feature
  • Manual release
  • Lifting Capacity
  • 4000kg (8840 lb)
  • Lifting Height
  • 1800mm (70.9”)
  • Machine Height
  • 3878mm (141.9”)
  • Machine Width
  • 3440mm (134.9”)
  • Rise time
  • 50s
  • Drop time
  • 22s
  • Power of motor
  • 2.2kw
  • Power Supply
  • 220V/380V 1/3 PHASE



Package Information
Metal frame and carton
3900*550*600mm  720kg

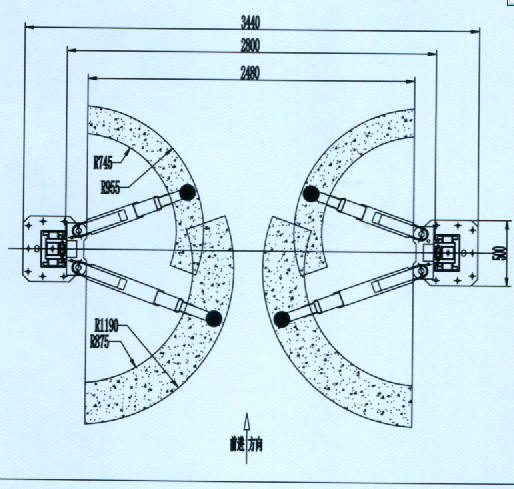

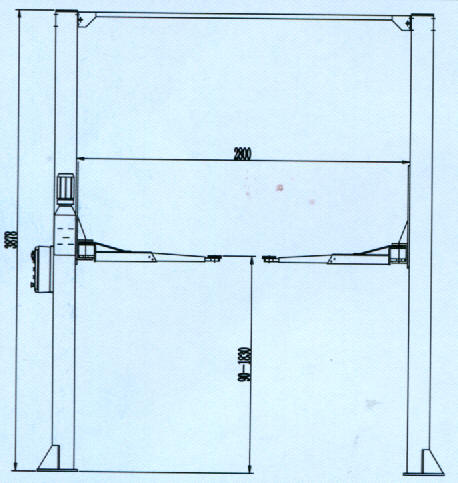

More Detail

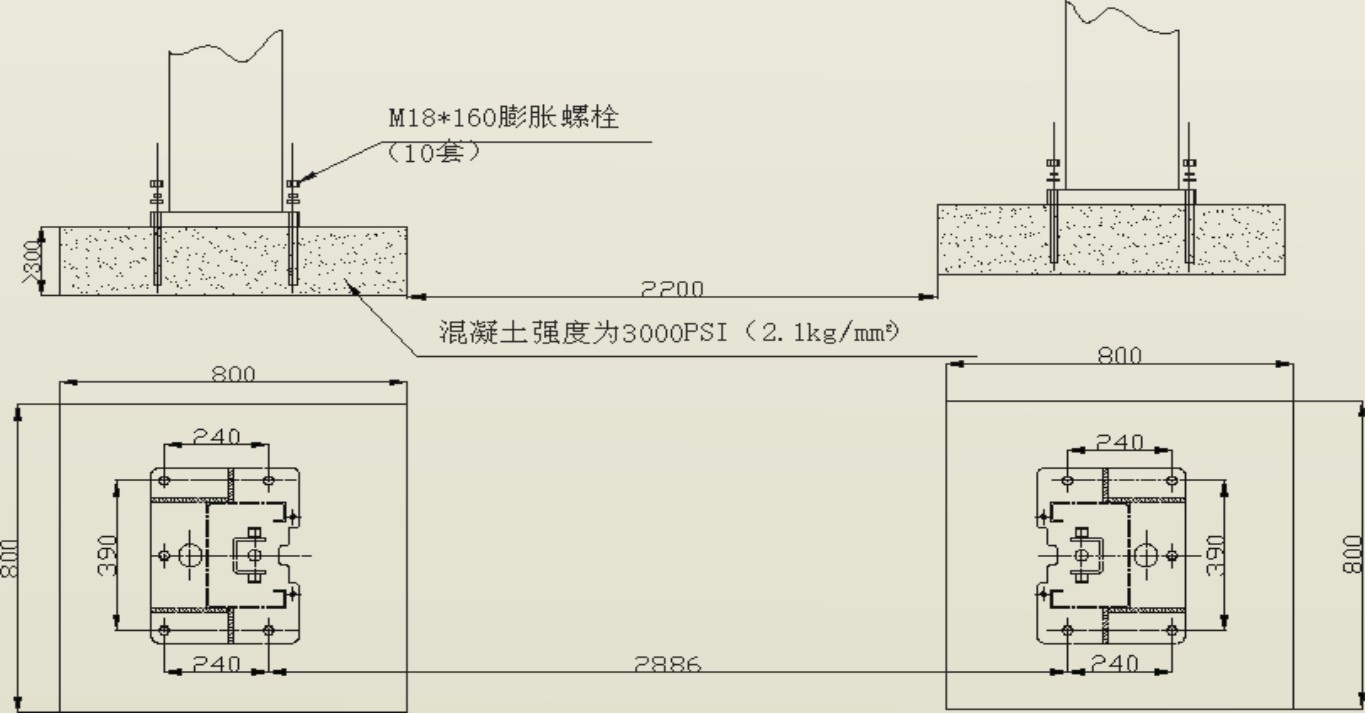

Bolt position
