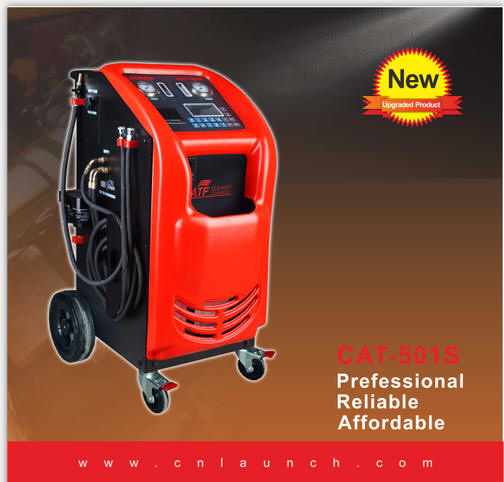

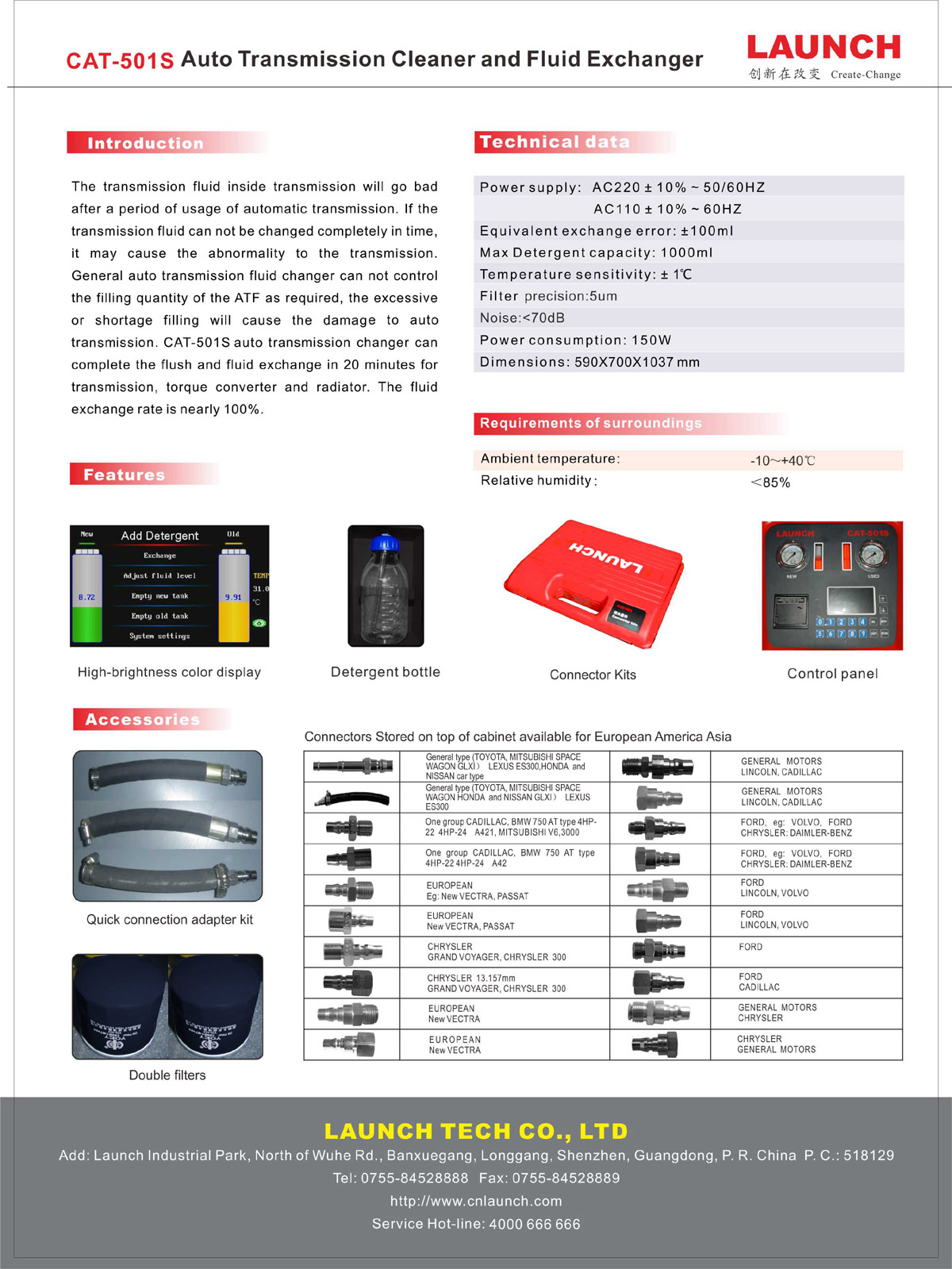

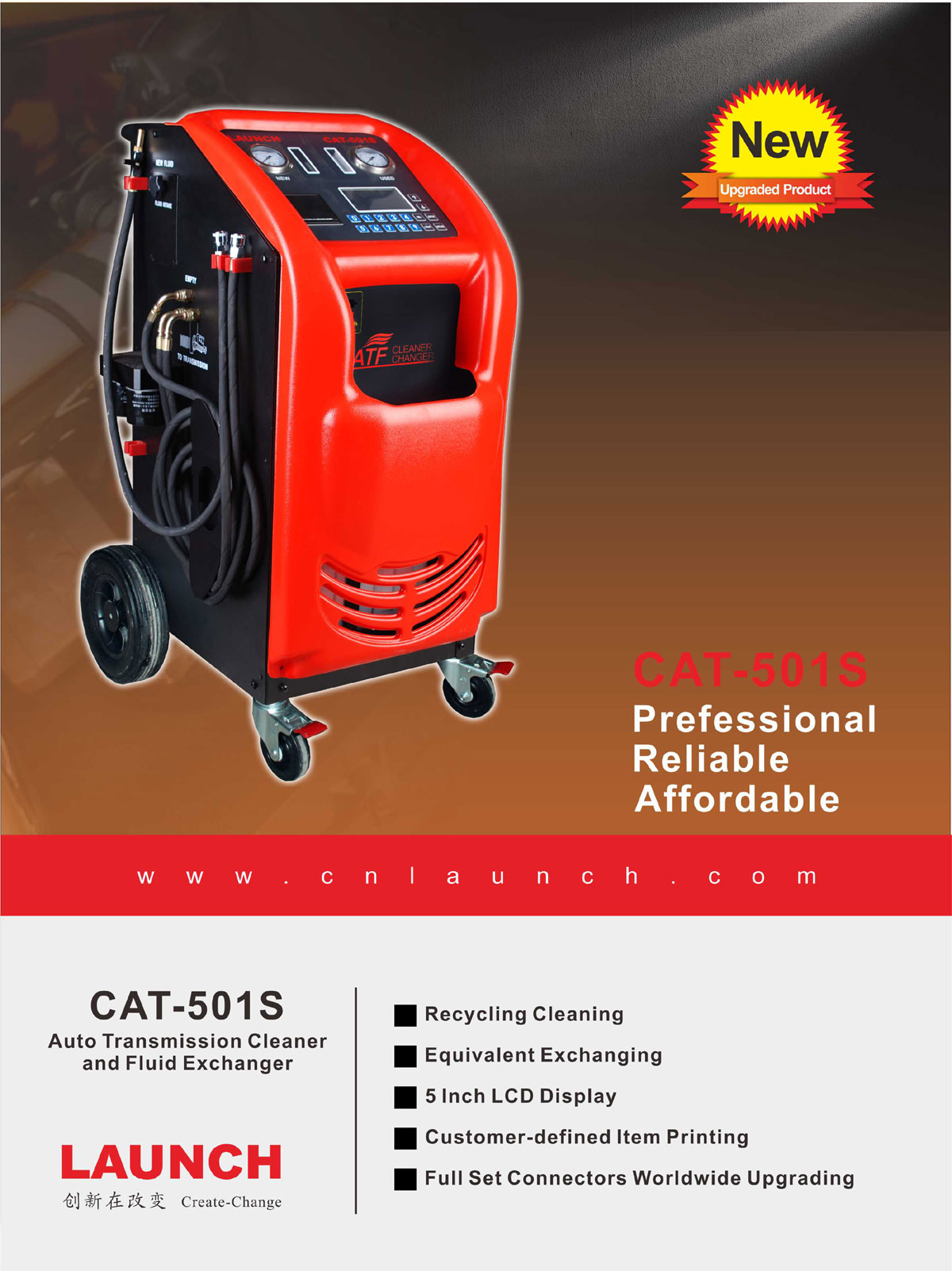

Launch CAT-501S Auto Transmission Fluid Exchanger and Cleaner



CTA-501S is professional in cleaning the auto transmission with the detergent added and exchanging the auto transmission fluid simultaneously with the engine on when there is pressure difference inside the auto transmission and the pump. It also has the function of auto transmission fluid flow automatical recognization, frequently-used vehicle adding and searching list, fluid exchanging result customerized printing, fluid filter replacement warning. Moreover, with bigger 5 inch display and optional VGA function, the presentation and operation will be more easy and vivid.

 Cycle cleaning with detergent
Equivalent exchange with high accuracy
5 inch display
Fluid exchanging result customerized printing
Free full set of vehicle connectors upgrading globally
Fluid flow automatical recognization
Fluid level adjustment
Filter replacement warning
Optional VGA function
Frequently-used vehicle adding and searching list


Working temperature: 0 ° Fto120 ° F/-18 ℃to50 ℃
Humidity: <90%
Working noise: <70dB
Working pressure: 86-106kpa
Water-proof grade: IP42
Filter accuracy:5μm
Flow speed:≥2.2L/1min
Fluid tank capacity: 20L×2
Equivalent exchange accuracy:±100ml




Package Information:
More Detail:
