Automobile lifts Catalogue--4 post lifts

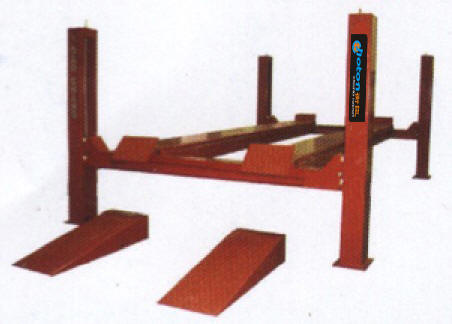

Model: HC4-65

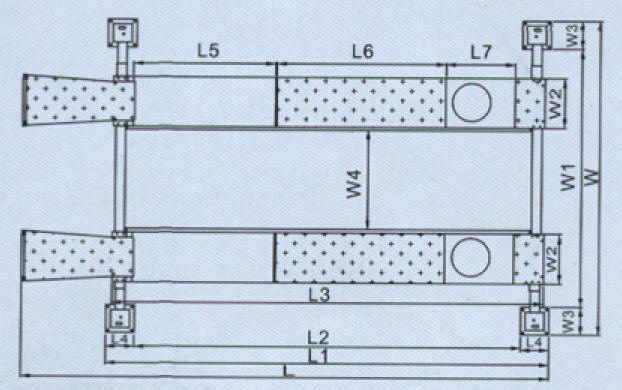

L:6840 L1:5668 L2:4968 L3:5500 L4:350 L6:1700
W:3424 W1:2824 W2:510 W3:300

Features:
Four post lift
This model, which is of a unique design, is an ideal lift specifically for the repair & maintenance, tyre-changing, and four-wheel aligning maintenance of various of high-grade cars, middle & small trucks and buses, etc. The advantages is easy operation, smooth & reliable working process, high lifting insurance quotiety and durability.
Technical Features:
1. New high quality 4-post lift for 2008 type, gathering with the advantages form the lift manufactured by overseas or domestic.
2. Polished design, two-layer hided structure whose capacity is excellent, and 1mm horizontal accuracy.
3. It implements new safe lifting technology of the world as one, included hydraulic control, electrical control and mechanical control.
4. Open or lock four safety device at one time through one-hand operation.
5. It implements safety device for steel-rope breaking and controlling switch for height limiting to make operator absolutely safe.
6. There is 6.5T lifting capacities for choices.
7. It has passed CE Test (Italy IG Company).
8. The products are insures against PICC (insurance amount is 10 million RMB )Features:
• Driven by hydraulic cylinder,transmitted by cable steel,it works quiet and safe
and rellable.
• Drive-up ramps prevent vehicles from sliding backward and front-wheel blocks
prevent vehicles from sliding forward

Parameter:
• Host Lift Weight : 6.5Ton
• Host Lift Height :1700 mm
• Power Supply 220/380 V
• Power 2.2 Kw
