HC530XJ Single Scissor Lift (Item:6461001)


3.0Ton lifting capacity.

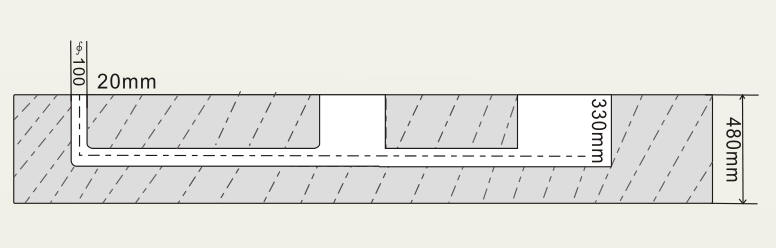

Underground installation, save place.

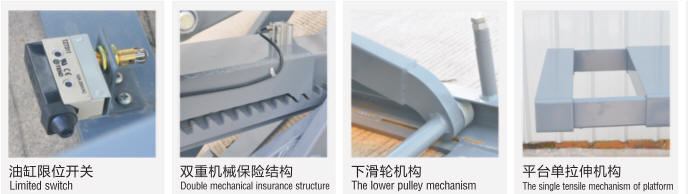

The mechanical safety lock automatically engaged when lifting
Pneumatic release system lower noise during operation
24V electric control, easy operation.
Stable lifting, and Low noise.
Double oil cylinder structure make leveling adjustment much easier
Electric/hydraulic power system
Good design easy for car going on and out.
115% dynamic loading and 150% static loading test.


Lifting capacity: 3.0Ton
Design: scissor lift (in-ground mounted)

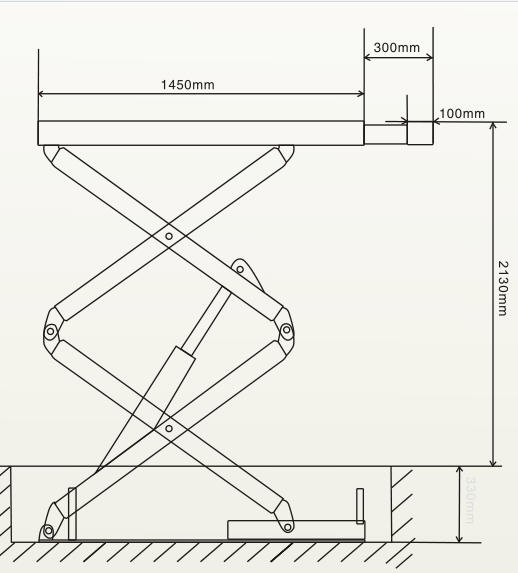

Lifting height: 330-2130mm
Lifting time: 45S
Power: 2.2KW
Voltage: 380V/220V, 3Ph/1Ph
Air supply: 6-8kg/cm2



Package Information
Metal frame and carton

Packing material: Metal frame, Plywood box
Main dimension: 1580*580*360mm, 520*360*1230mm
G.W./N.W.: 865KG/850KG
Qty of Container: 24units/20'GP
