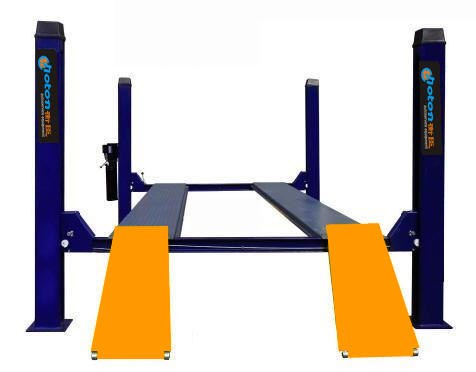

HC435P Four Post Car Lift


. Electro-hydraulic lift, with hydraulic cylinder located under one of the platforms.
. Low profile platforms, with short drive-on ramps, can be for 170mm when fully lowered, requires less space.
. Each platform is the complete steel plate without splicing, no welding, ensures durability and planeness.
. Safety rack installed in each column. Mechanical lock engaged automatically in lifting process.
. Adjustable width between two platforms makes the lift more flexible for different vehicles.

  • Model
  • HC-435P(Item:641101)
  • Machine body
  • Main unit
  • Lifting Capacity
  • 3500kg (7716 lb)
  • Lifting Height
  • 1700mm (67”)
  • Platform height
  • 170mm (6.7”)
  • Platform length
  • 4340mm (170”)
  • Platform width
  • 520mm (20.5”)
  • Lifting time
  • ≤55s
  • Dropping time
  • ≤55s
  • Width
  • 3110mm (245”)
  • Length
  • 5100mm (200”)


Main unit

Package Information

Metal frame and carton
